china Pulse dust collector for blast furnace gas

A pulse dust collector for blast furnace gas is an essential device. It is designed to effectively remove dust particles from blast furnace gas. By using pulse jet technology, it can clean the filter bags periodically, ensuring high - efficiency dust collection, which helps in environmental protection and gas purification in steel plants.

Product Profile

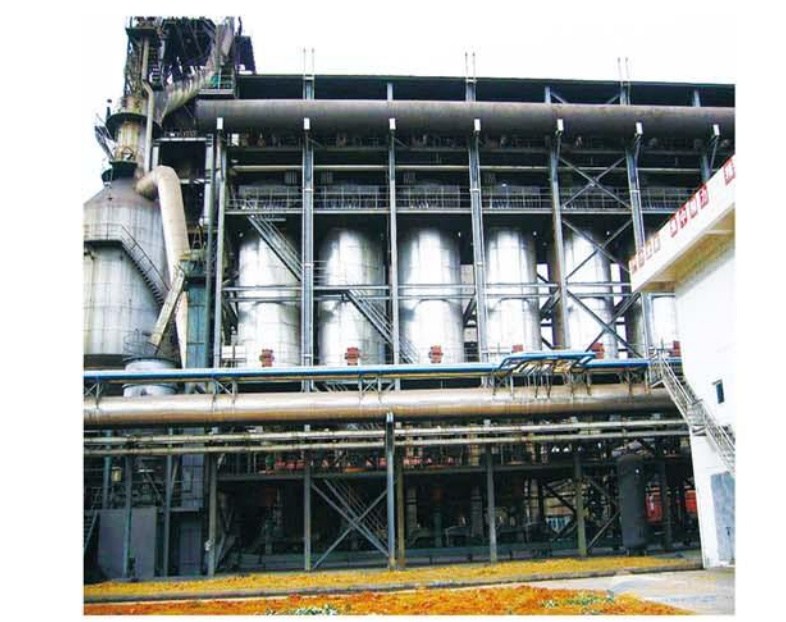

A large amount of high-temperature gas containing CO and dust is produced in the smelting process of blast furnace. If it is not treated and recovered, it will pollute and waste energy. In the early stage of blast furnace gas treatment, wet washing methods such as scrubber and Venturi tube are mainly used to remove dust. But the system has many disadvantages such as complex equipment, large water consumption, secondary pollution, serious corrosion of washing equipment, water in gas, etc., which hinder the application of wet purification technology. The dry pulse dust collector of blast furnace gas is based on the long bag low pressure pulse bag dust collector and combined with the characteristics of blast furnace gas, the necessary safety measures such as pressure resistance and explosion protection are adopted for the dust collector. At the same time, the necessary dehydration and de-oil treatment are done for the pulse dust cleaning gas source. The control technology is controlled by PLC microcomputer, so that it has the characteristics of high dust collection efficiency, good safety performance, convenient operation and maintenance, and small footprint.

The dry pulse dust collector for blast furnace gas combines the advantages of two types of dust collectors: chamber reverse blow and pulse dust cleaning, overcomes the shortcomings of insufficient ash cleaning intensity of chamber reverse blow and dust reattachment of general pulse dust cleaning, improves ash cleaning efficiency, and injects large. The dust collector uses submerged pulse valve to reduce the pressure of injection gas source. In this way, the operation energy consumption of the equipment is low, the life of the filter bag and pulse valve is extended, and the comprehensive technical performance is greatly improved.

Working principle

Dry pulse dust collector for blast furnace gas adopts off-line dust cleaning in separate chambers, and dust filter bags are evenly distributed according to each chamber and each group. With the continuous filtration process, the stratified dust on the outside of the filter bag gradually increases, so that the dust removal resistance increases. When the resistance rises to the set range, the dust removal control system (PC) sends out. First, close the switching valve and open the pulse valve, and the compressed air sprays airflow to each filter bag through the nozzle, so that the filter bag is deformed and shocked, so as to achieve the purpose of cleaning ash. After the dust cleaning is over, the switching battlement valve is opened again, and the dust collector enters the filtration state again, without interfering with each other, realizing continuous operation and improving the dust cleaning effect. Because it has high filtering speed, small volume and convenient operation.

Process characteristics

1. Pressure-resistant circular cylinder, withstanding high pressure of 0.1 MPa. The upper part is provided with an explosion-proof valve, and the ash storage bin is provided under the ash unloading device of the ash bucket, which has good safety and sealing performance;

2. The ash cleaning mechanism of the equipment (pulse valve, exhaust valve, ash returning equipment, etc.) is controlled by PLC, with timing (fixed resistance) and manual control

3. Pulse dust cleaning, the pressure gas uses inert gas (nitrogen) or clean pressurized gas;

4. Long bag low pressure pulse. Compact structure, high strength, strong rigidity, good sealing, good ash cleaning effect, convenient operation and maintenance, safe and reliable operation;

5. Modular design, which can be used in combination with multiple units.
